Snowsorber   -   Jocavi, Absorbent panels


In order to enlarge the range of options available in absorption panels, JOCAVI® created the Snowsorber®.



This is an absorption panel made of low-density polyurethane. Its shape was thoroughly developed and it is finished with recycled projectable cellulose.

It was mainly designed to be mounted on false ceilings, but it can also be mounted on walls.

Commercial areas, auditoriums, meeting rooms, public spaces, etc., all need specific care regarding noise.

The creation of surfaces that are efficient at absorbing sound waves thus becomes imperative and that is the feature that makes this product so important.

Due to its high absorption coefficient and low cost, the Snowsorber® is a specific and dedicated product for the acoustic treatment of large areas.

Features:
  • Uses 50% of recycled materials.
  • NRC: 0.83.
  • 100% recyclable.
  • Fire-resistance: M0.
  • Package: 2 and 4 units.
  • Installation: accessories included.

Standardn RAL Colours

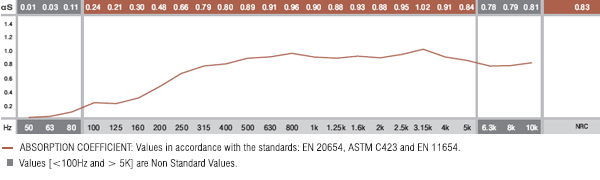

Absorption Coefficient

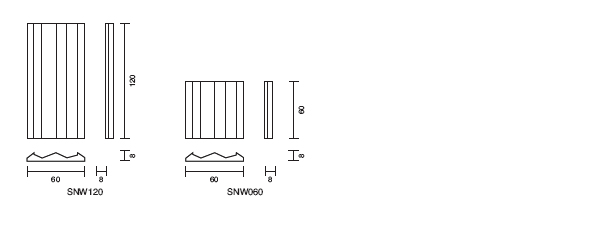

Technical drawing:


Model sizes:
    H W D Kg
  SNW120 120 cm 60 cm 8 cm 3.8
  SNW060 60 cm 60 cm 8 cm 1.9


Jocavi Snowsorber





Jocavi Snowsorber





Jocavi Snowsorber
