Trab30S / R   -   Jocavi ATP, Absorbent panels


Trab30S / R are low-frequencies' node reduction tools. They are made of high quality cell controlled, self-extinguishable M1 fire-retardant acoustic foam.



Bass corners' absorbers are substantially adequate to control nodes in the rooms.

This simple and affordable solution provides immediate results for those who do not want time-consuming building solutions.

Trab30S / R are effective low frequency smoothing panels at a price affordable to everybody.

This model proposes two optional shapes: one with straight lines and one with curved lines.

Choose the shape that is most suitable to your room.

Features:
  • NRC average: 0.87 / m2.
  • Self-extinguishable M1 fire-retardant acoustic foam.
  • Package: 4 units.
  • In stock for immediate delivery.
  • Very easy to install.

Standard Colours

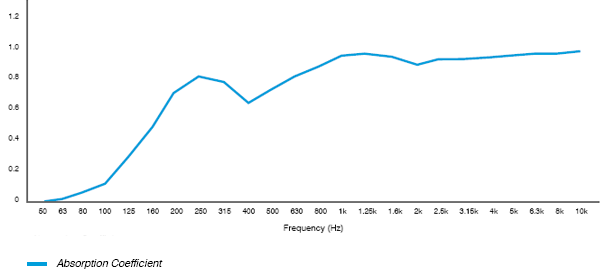

Value: Absorption Coefficient



Graphic:

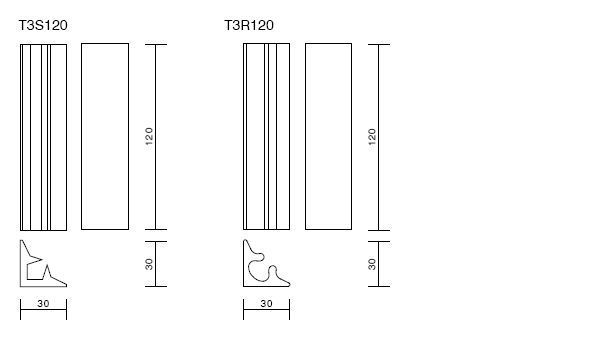

Technical drawing:


Model sizes:
    H W D Kg
  T3S120 120 cm 30 cm 30 cm 0.9
  T3R120 120 cm 30 cm 30 cm 0.9


Package Data - T3S120:
    H W D Kg
  4 units/box 124 cm 64 cm 30 cm 6.2

Package Data - T3R120:
    H W D Kg
  4 units/box 124 cm 64 cm 30 cm 6.2


Jocavi ATP Trab30S / R





Jocavi ATP Trab30S / R





Jocavi ATP Trab30S / R





Jocavi ATP Trab30S / R
