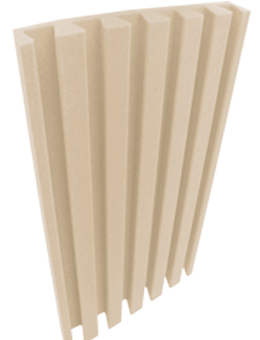

Stripesorb   -   Jocavi ATP, Absorbent panels


STRIPESORB® is the panel meant for budget-conscious acoustic projects.



STRIPESORB® acoustic foam panels are cut in a simple standard method to keep it more affordable.

It is a great solution to treat acoustics in small sound studios, home listening rooms and small vocal or instrument booths, by solving small flutter echo problems.

Its shape maximises the area that is exposed to the sound waves for better absorption.

You can combine the STRIPESORB® with the STRIPEFUSER® diffusion panel; they have the same shape and offer great decorative alternatives.

Features:
  • NRC average: 0.81 / m2.
  • Self-extinguishable M1 fire-retardant acoustic foam.
  • Package: 4 units or 12 units.
  • In stock for immediate delivery.
  • Very easy to install.

Standard Colours

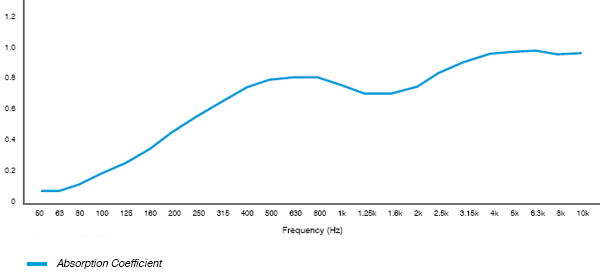

Value: Absorption Coefficient



Graphic:

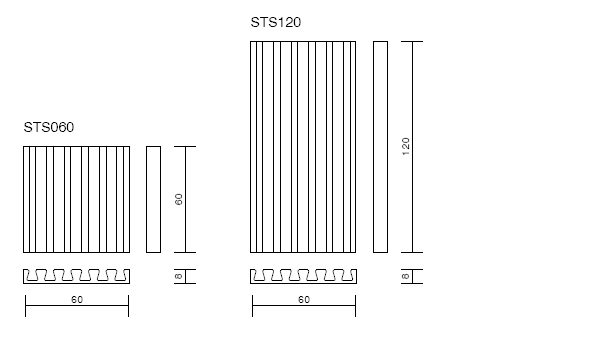

Technical drawing:


Model sizes:
    H W D Kg
  STS060 60 cm 60 cm 8 cm 0.4
  STS120 120 cm 60 cm 8 cm 0.8


Package Data - STS060:
    H W D Kg
  4 units/box 35 cm 64 cm 64 cm 3.5
  12 units/box 104 cm 64 cm 64 cm 8.9

Package Data - STS120:
    H W D Kg
  4 units/box 124 cm 64 cm 30 cm 5.5
  8 units/box 124 cm 64 cm 51 cm 10.8
