Stripefuser   -   Jocavi ATP, Combined absorption / Diffusion panels


The STRIPEFUSER® acoustic panel is the least expensive model of diffusers of our brand.



It has a striped shape and is made of high quality 100% recyclable ecologic EPS raw material.

This model can be combined with the STRIPESORB®; as a result, two different acoustic areas keep maintaining the same shape.

The STRIPEFUSER® offers associate absorption because the uniform protruding stripes make the sound to enter directly into the concavities.

This product offers uniform unidirectional diffusion and provides an attractive design to ceilings and walls.

It is a cost-effective diffuser as an alternative to other more expensive diffusion panels.

Features:
  • Diffusion average: 0.52 / m2 [> 100 Hz; < 5 KHz].
  • NRC average: 0.26 / m2 [> 100 Hz; < 5 KHz].
  • EPS Euroclass fire-retardant (NP EN 13501-1).
  • Package: 4 units or 12 units.
  • In stock for immediate delivery.
  • Very easy to install.

Standard RAL Colours

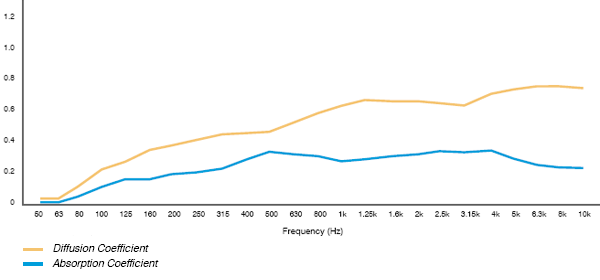

Value: Diffusion Coefficient



Value: Absorption Coefficient



Graphic:

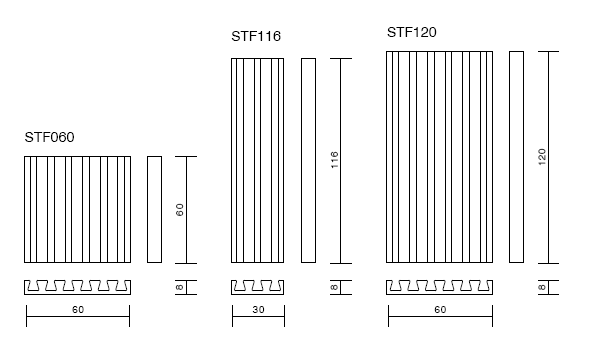

Technical drawing:


Model sizes:
    H W D Kg
  STF060 60 cm 60 cm 8 cm 0.6
  STF116 116 cm 30 cm 8 cm 0.7
  STF120 120 cm 60 cm 8 cm 1.5


Package Data - STF060:
    H W D Kg
  4 units/box 35 cm 64 cm 64 cm 4.3
  12 units/box 104 cm 64 cm 64 cm 12

Package Data - STF116:
    H W D Kg
  6 units/box 124 cm 64 cm 30 cm 7.2

Package Data - STF120:
    H W D Kg
  4 units/box 124 cm 64 cm 30 cm 7.4
  8 units/box 124 cm 64 cm 51 cm 17.1


Jocavi ATP Stripefuser





Jocavi ATP Stripefuser





Jocavi ATP Stripefuser
