Seafoam   -   Jocavi ATP, Absorbent panels


Seafoam® is made of a flexible open-cell foam from melamine resin, a thermoset polymer.



This foam is characterised by its three-dimensional network structure which consists of easily shaped thin filaments. The sound waves penetrate the open-cell structure, thus reducing the reflected energy and giving this product an excellent sound absorption capacity.

Due to its low weight, Seafoam® allows the creation of large-surface elements that seem to be free-floating, giving rooms an attractive appearance.

The simple installation method does not require any additional structural or engineering calculations.

Working areas which are exposed to high levels of noise, such as industrial areas, pavillions, among others, can be acoustically restored at a low cost, by reequipping them with these lightweight absorbers.

Meeting rooms, offices and hotel foyers can also be adapted in an efficient and attractive way.

We can make specific shapes and sizes for large projects upon demand. Seafoam®'s acoustic and safety characteristics make this product ideal for use as a noise control and sound insulation device in buildings that have demanding requirements against fire.

It improves acoustics and soundproofing, thereby providing safety in accordance with environmental standards.

Features:
  • NRC: 0,80.
  • Raw material: melamine resin.
  • Flame resistance: Germany B1, France.
  • M1, GB class1, USA V0/HF1.
  • Good thermal insulation properties.
  • Humidity tolerability.
  • Constant physical properties over a wide temperature range.
  • Resistance to all organic solvents.
  • Package: 8 units.
  • Mounting: with glue or by hanging.

Standard Colours

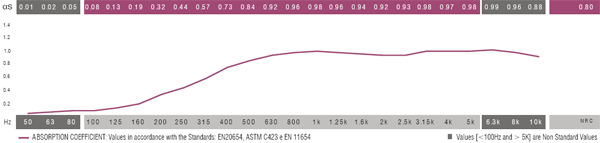

Value: Absorption Coefficient

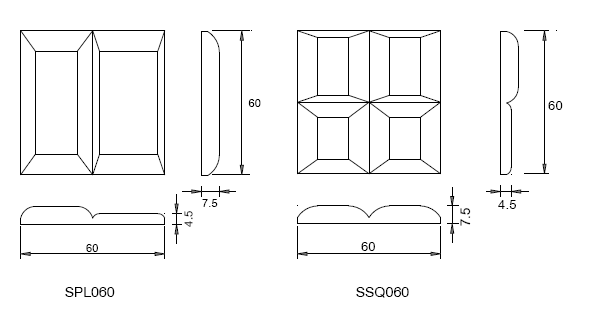

Technical drawing:


Model sizes:
    H W D Kg
  SPL060 60 cm 60 cm 8 cm 0.6
  SSQ060 60 cm 60 cm 8 cm 0.6


Jocavi ATP Seafoam





Jocavi ATP Seafoam





Jocavi ATP Seafoam
