Jocavi ATP

Reflex - Jocavi ATP, Combined absorption / Diffusion panels

The REFLEX® represents another option in acoustic diffusers, thus allowing different aesthetic and performance possibilities.

It is made of high quality 100% recyclable ecologic EPS raw material.

It is used on side or back walls to blend the direct and early reflected sound, thus increasing speech intelligibility and enhancing musical clarity.

This diffusion panel offers optimal shape and more omnidirectional scattering diffusion than traditional, non-optimized panels do.

It is a very good cost-effective choice for a 2D sound diffuser.

Features:

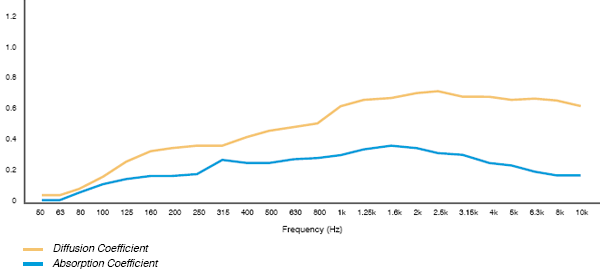

Diffusion average: 0.50 / m2 [> 100 Hz; < 5 KHz].
NRC average: 0.26 / m2 [> 100 Hz; < 5 KHz].
EPS Euroclass fire-retardant (NP EN 13501-1).
Package: 4 units or 10 units.
In stock for immediate delivery.
Very easy to install.

Standard RAL Colours
