Cubesorb   -   Jocavi ATP, Absorbent panels


The CUBESORB® is one of the least expensive and most popular quadratic shaped acoustic treatment absorbers made of acoustic foam.



It is recommended for project spaces, vocal booths, control rooms and sound studios.

The CUBESORB® is used to treat small to medium sized rooms. You can also use it on industry market solutions when mandatory and stronger acoustic absorption is required.

Its protruding cubes form some concave grooves which cause a substantial increase in absorption coefficients.

They effectively reduce standing waves and flutter echoes. When used in combination with the CUBEFUSER®, the resulting scattering sound balances diffusion inside your room.

Fix your room acoustics without the help of a professional.

Features:
  • NRC average: 0.79 / m2.
  • Self-extinguishable M1 fire-retardant acoustic foam.
  • Package: 4 units or 12 units.
  • In stock for immediate delivery.

Standard Colours

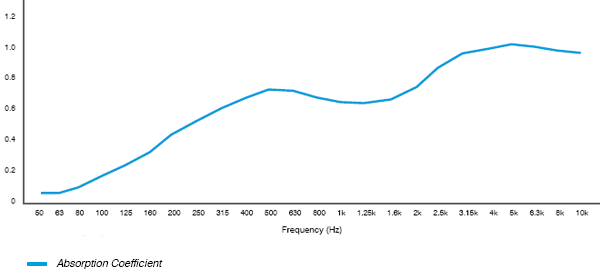

Value: Absorption Coefficient



Graphic:

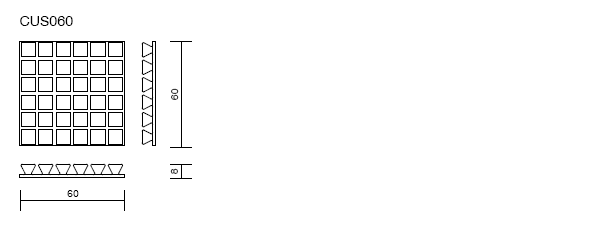

Technical drawing:


Model sizes:
    H W D Kg
  CUS060 60 cm 60 cm 8 cm 0.3


Package Data - CUS060:
    H W D Kg
  4 units/box 35 cm 64 cm 64 cm 3.5
  12 units/box 104 cm 64 cm 64 cm 7.8


Jocavi ATP Cubesorb





Jocavi ATP Cubesorb





Jocavi ATP Cubesorb
