Cubefuser   -   Jocavi ATP, Combined absorption / Diffusion panels


The CUBEFUSER® acoustic panel is one of the least expensive diffusers of our brand. It is cubic shaped and is made of high quality 100% recyclable ecologic EPS raw material.



This model can be combined with the CUBESORB®; as a result, two different acoustic areas keep maintaining the same shape.

The CUBEFUSER® offers associate absorption, because the uniformly protruding cubes make the sound to enter directly into the concavities.

This diffuser offers uniform unidirectional diffusion and provides an attractive design to ceilings and walls.

It is a cost-effective diffusion panel as an alternative to other more expensive diffusers.

Features:
  • Diffusion average: 0.50 / m2 [> 100 Hz; < 5 KHz].
  • NRC average: 0.34 / m2 [> 100 Hz; < 5 KHz].
  • Great decorative alternatives.
  • EPS Euroclass fire-retardant (NP EN 13501-1).
  • Package: 6 units or 12 units.
  • In stock for immediate delivery.
  • Very easy to install.

Standard RAL Colours



Value: Diffusion Coefficient



Value: Absorption Coefficient



Graphic:

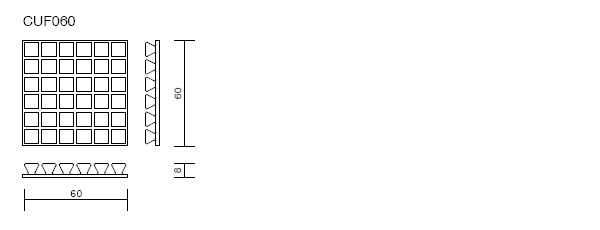

Technical drawing:


Model sizes:
    H W D Kg
  CUF060 60 cm 60 cm 8 cm 0.5


Package Data - CUF060:
    H W D Kg
  4 units/box 35 cm 64 cm 64 cm 4.0
  12 units/box 104 cm 64 cm 64 cm 10.2
