Basskeeper wall   -   Jocavi ATP, Tuned absorption panels


BASSKEEPER® WALL is the newest ATP® solution for absorption of low frequencies to mount on walls and ceilings.



When combined with the BASSKEEPER® ANGLE, it provides the best ATP® choice among the low-frequency products.

This bass trap is a 120Hz tuned resonance open box model like the BASSKEEPER® ANGLE and you can match them.

These two products together provide a true linear tool and a first class approach to tame low frequencies and take perfect control of the basses.

In most situations these two models solve all serious low-end problems in the room.

Several colours are at your disposal. They look great!

Features:
  • NRC average: 0.66 / m2 [> 100 Hz; < 250 Hz].
  • EPS Euroclass fire-retardant (NP EN 13501-1).
  • Package: 2 units.
  • Installation: glues included.
  • In stock for immediate delivery.
  • Very easy to install.

Standard RAL Colours

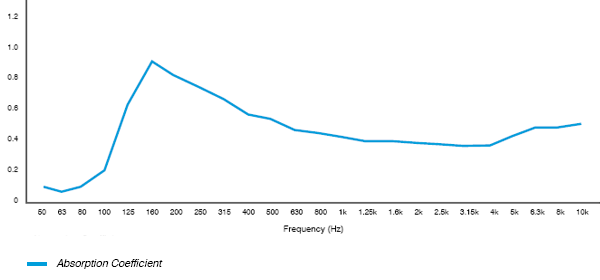

Value: Absorption Coefficient



Graphic:

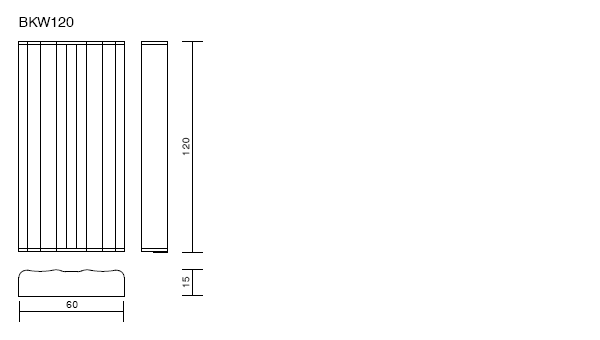

Technical drawing:


Model sizes:
    H W D Kg
  BKW120 120 cm 60 cm 15 cm 3.1


Package Data - BKW120:
    H W D Kg
  2 units/box 124 cm 64 cm 31 cm 9.2
  4 units/box 124 cm 64 cm 51 cm 17.5


Jocavi ATP Basskeeper wall





Jocavi ATP Basskeeper wall





Jocavi ATP Basskeeper wall
