Basskeeper angle   -   Jocavi ATP, Tuned absorption panels


BASSKEEPER® ANGLE is the best proposal from the ATP® low-frequency absorbent panels. It produces an overpowering effect in the corners of the room where the basses build-up is most often present.



The BASSKEEPER® ANGLE is a 120Hz tuned resonance open box model, thus being very effective.

Just like the BASSKEEPER® ANGLE, which is a corner bass trap, the BASSKEEPER® WALL has the same shape but is meant to be applied on walls.

It is a first-rate approach to tame low-frequency anomalies in your room.

In most cases, the combination of these two models solves all serious low-end problems of the room, thus allowing you to create your own individual look while offering great bass acoustics control.

Several colours are at your disposal.

Features:
  • NRC average: 0.78 / m2 [> 100 Hz; < 250 Hz].
  • EPS Euroclass fire-retardant (NP EN 13501-1).
  • Package: 2 units.
  • Installation: glues included.
  • In stock for immediate delivery.
  • Very easy to install.

Standard RAL Colours

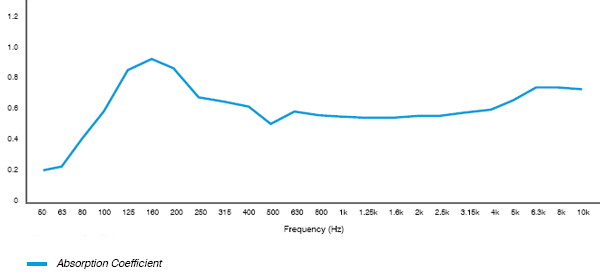

Value: Absorption Coefficient



Graphic:

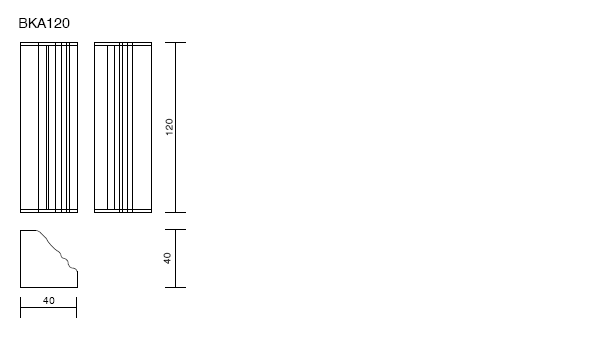

Technical drawing:


Model sizes:
    H W D Kg
  BKA120 120 cm 40 cm 40 cm 3.6


Package Data - BKA120:
    H W D Kg
  2 units/box 124 cm 64 cm 51 cm 10.7
