ATP Acoustic Treatment PacksATP 01 9 - 13 sq. m. ATP 02 13 - 17 sq. m. ATP 03 17 - 24 sq. m. ATP 04 24 - 30 sq. m. ATP 05 30 - 40 sq. m. |
ATP 05 Excellence - Jocaci ATP Acoustic Treatment PacksThe Acoustic Treatment Pack®05 is specific for large-sized music rooms.You can choose from the two ATP®05 available solutions: Standard or Excellence, depending on your needs and aesthetic taste. It provides acoustic comfort in control room studios, tracking rooms, hi-fi or home-cinema rooms, rehearsal rooms, etc. It uses low-frequency tuned modules, BKA120 and BKW120, which are duly balanced with the absorbers and diffusers FSO060 and WAV060, as pictures show. The application of the low-frequency tuned absorbers in the corners of the room and on the walls is mandatory, in this case, to hold the energy at low frequencies. The integration of the acoustic modules, sound system and listener is decisive for a good audition, therefore minimising the differences in the distribution of the acoustic pressure as well as the modal emphasis and SBIR (speaker-boundary interference response). Give your ears an opportunity and see how the performance of your sound system improves. ATP®05 is an easy-to-install assembly kit and is provided with assembly instructions, as well as the glues and tools which are necessary to apply the acoustic modules. Where to apply:

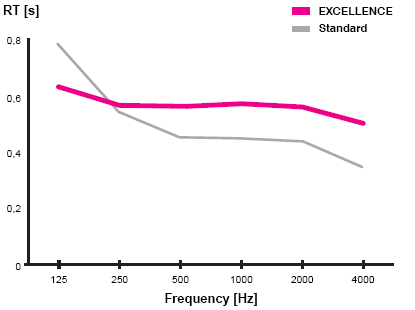

These values were obtained by simulation in specific JAS® software and later confirmed through acoustic analyses in the rooms. The simulated and tested rooms are totally empty, and only the referred ATP®05 PACK acoustic panels are applied. Traditional construction room with the following features:
Sabine 0.63 sec
ATP 05 Standard - Jocaci ATP Acoustic Treatment PacksThe Acoustic Treatment Pack®05 is specific for large-sized music rooms.You can choose from the two ATP®05 available solutions: Standard or Excellence, depending on your needs and aesthetic taste. It provides acoustic comfort in control room studios, tracking rooms, hi-fi or home-cinema rooms, rehearsal rooms, etc. It uses low-frequency tuned modules, BKA120 and BKW120, which are duly balanced with the absorbers and diffusers FSO060 and WAV060, as pictures show. The application of the low-frequency tuned absorbers in the corners of the room and on the walls is mandatory, in this case, to hold the energy at low frequencies. The integration of the acoustic modules, sound system and listener is decisive for a good audition, therefore minimising the differences in the distribution of the acoustic pressure as well as the modal emphasis and SBIR (speaker-boundary interference response). Give your ears an opportunity and see how the performance of your sound system improves. ATP®05 is an easy-to-install assembly kit and is provided with assembly instructions, as well as the glues and tools which are necessary to apply the acoustic modules. Where to apply:

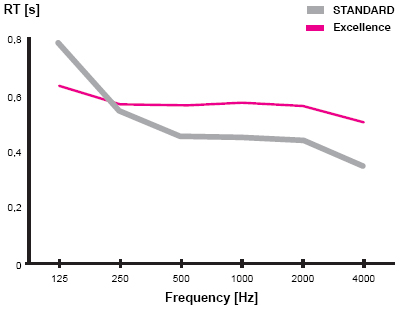

These values were obtained by simulation in specific JAS® software and later confirmed through acoustic analyses in the rooms. The simulated and tested rooms are totally empty, and only the referred ATP®05 PACK acoustic panels are applied. Traditional construction room with the following features:
Sabine 0.64 sec
|
 Jocavi ATP 05 Excellence panels for acoustic solutions and complete sound The panels fit well into the interior Jocavi panels for rooms from 30 - 40 m2 The number of units in this pack Jocavi ATP 05 Standard panels for acoustic treatment Good panels for better sound Acoustic panels for rooms from 30 - 40 m2 The number of units in this pack |
