ATP Acoustic Treatment Packs


ATP 01   9 - 13 sq. m.
ATP 02 13 - 17 sq. m.
ATP 03 17 - 24 sq. m.
ATP 04 24 - 30 sq. m.
ATP 05 30 - 40 sq. m.





ATP 02 Excellence   -   Jocaci ATP Acoustic Treatment Packs


The ATP®02 has been created for small-sized home-cinema rooms, home-studios and rehearsal rooms.



You can choose from the two ATP®02 available solutions: Standard or Excellence, depending on your needs and aesthetic taste.

The ATP®02 approach consists on adjusting the room dimensions to sizes which are slightly bigger than those of ATP®01. The acoustic treatment modules must also be placed in relation to the listener and the speakers, while minimizing the SBIR (speaker-boundary interference response) and the modal emphasis to produce a frequency response as flat as possible in the room. Give your ears an opportunity and see how the performance of your sound system improves.

All packs are supplied with assembly instructions, as well as the glues and tools which are necessary to apply the acoustic modules.

Where to apply:
  • Rooms with an area between: 13 and 17 square meters
  • Rooms with volumes between: 35 and 45 cubic meters
  • For use in small-sized home-theatre rooms, home-studios, Hi-fi rooms or instrument rooms.
ATP®02 Acoustic features:
These values were obtained by simulation in specific JAS® software and later confirmed through acoustic analyses in the rooms. The simulated and tested rooms are totally empty, and only the mentioned ATP®02 PACK acoustic panels are applied.

Traditional construction room with the following features:
  • Dimensions: (L, W, H): 4.31m / 3.58m / 2.8m.
  • Walls: masonry with painted fine stuff and a wooden door
  • Ceiling: 12 mm - thick plaster.
  • Floor: natural floating parquet.

125 Hz 250 Hz 500 Hz 1 K 2 K 4 K
0.66 0.58 0.54 0.50 0.46 0.45
Sabine 0.53 sec

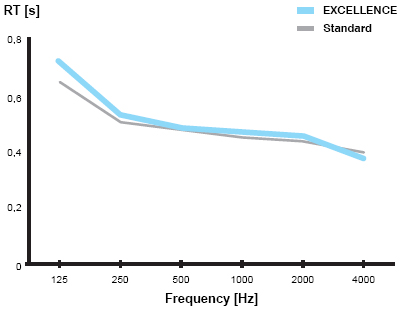

Reverberation time for ATP 01 Excellence


  Reference Panels Units Diffusor Absorbent Tuned
  WAV060 Wavyfuser 6 + - -
  WAI060 Wavyfuser INV 6 + - -
  FSO060 Foamsorb 6 - + -
  FSI060 Foamsorb INV 6 - + -
  T3R120 Trap 30R 8 - + -



ATP 02 Standard   -   Jocaci ATP Acoustic Treatment Packs


The ATP®02 has been created for small-sized home-cinema rooms, home-studios and rehearsal rooms.



You can choose from the two ATP®02 available solutions: Standard or Excellence, depending on your needs and aesthetic taste.

The ATP®02 approach consists on adjusting the room dimensions to sizes which are slightly bigger than those of ATP®01. The acoustic treatment modules must also be placed in relation to the listener and the speakers, while minimizing the SBIR (speaker-boundary interference response) and the modal emphasis to produce a frequency response as flat as possible in the room. Give your ears an opportunity and see how the performance of your sound system improves.

All packs are supplied with assembly instructions, as well as the glues and tools which are necessary to apply the acoustic modules.

Where to apply:
  • Rooms with an area between: 9 and 13 square meters
  • Rooms with volumes between: 22 and 35 cubic meters
  • For use in small-sized home-theatre rooms, home-studios, Hi-fi rooms or instrument rooms.
ATP®02 Acoustic features:
These values were obtained by simulation in specific JAS® software and later confirmed through acoustic analyses in the rooms. The simulated and tested rooms are totally empty, and only the mentioned ATP®01 PACK acoustic panels are applied.

Traditional construction room with the following features:
  • Dimensions: (L, W, H): 3.47m / 2.85m / 2.5m.
  • Walls: masonry with painted fine stuff and a wooden door.
  • Ceiling: 12 mm - thick plaster.
  • Floor: natural floating parquet.

125 Hz 250 Hz 500 Hz 1 K 2 K 4 K
0.69 0.55 0.52 0.50 0.48 0.43
Sabine 0.53 sec

The way the reverberation time develops for ATP 01 Standard


  Reference Panels Units Diffusor Absorbent Tuned
  STS120 Stripesorb 12 - + -
  T3S120 Trap 30S 8 - + -


Excellent solution in order to create optimal acoustic performance

Jocavi ATP 02 Excellence panels for acoustic solutions and complete sound



Acoustic panels for smaller rooms

The panels fit well into the interior



The panels improve your sound system

Jocavi panels for rooms from 13 - 17 m2



The units of the acoustic traetment pack of ATP 02 excellence

The number of units in this pack







Standard solution creating better acoustic sound

Jocavi ATP 02 Standard panels for acoustic treatment



Acoustic panels for small rooms and complete sound

Good panels for better sound



Improving your sound system with panels from Jocavi

Acoustic panels for rooms from 13 - 17 m2



The units of the acoustic traetment pack of ATP 02 standard

The number of units in this pack
